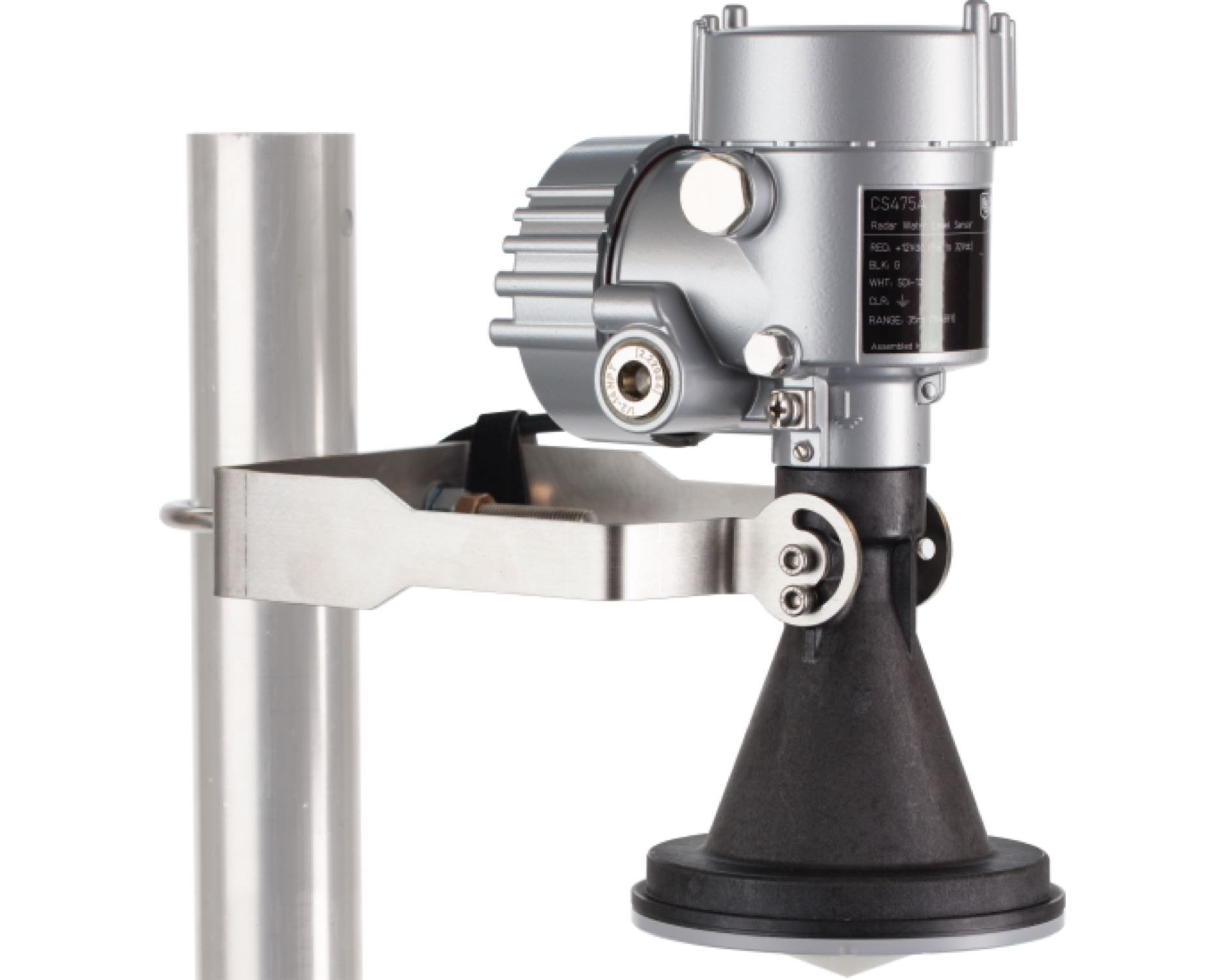

Radar Water Level Sensor CS475A-L
The Campbell Scientific CS475A-L Radar Sensor is a non-contact water level sensor. Utilizing radar technology, the CS475A-L delivers precise and reliable measurements of water levels in rivers, streams, and other water bodies. Its 35-meter (114 ft) range makes it the best choice for monitoring flooding from high bridges. Its robust design and high accuracy make it a reliable choice for emergency managers, public works departments, and climate researchers seeking to enhance their flood monitoring capabilities.
The Campbell Scientific CS475A-L Radar Sensor is a non-contact water level sensor. Utilizing radar technology, the CS475A-L delivers precise and reliable measurements of water levels in rivers, streams, and other water bodies. Its 35-meter (114 ft) range makes it the best choice for monitoring flooding from high bridges. Its robust design and high accuracy make it a reliable choice for emergency managers, public works departments, and climate researchers seeking to enhance their flood monitoring capabilities.
The Campbell Scientific CS475A-L Radar Sensor is a non-contact water level sensor. Utilizing radar technology, the CS475A-L delivers precise and reliable measurements of water levels in rivers, streams, and other water bodies. Its 35-meter (114 ft) range makes it the best choice for monitoring flooding from high bridges. Its robust design and high accuracy make it a reliable choice for emergency managers, public works departments, and climate researchers seeking to enhance their flood monitoring capabilities.
Key Features
Non-Contact Measurement: Employs radar technology to measure water levels without direct contact, minimizing maintenance and reducing the risk of damage from debris or high-flow conditions.
High Accuracy and Precision: The CS475A-L offers exceptional a resolution of 1mm and accuracy of ±2 mm, ensuring precise water level data even from a high bridge.
Wide Measurement Range: Capable of measuring water levels from 0.5 to 35 meters (1.6 to 114.8 ft), accommodating a broad range of monitoring scenarios from small streams to large rivers.
Durable and Weather-Resistant: Built to withstand harsh environmental conditions, the CS475A-L features a rugged IP68 housing that is resistant to water, dust, and temperature extremes, ensuring reliable performance in all weather conditions.
Low Power Consumption: Designed for energy efficiency, the sensor's low power consumption makes it suitable for remote installations with solar-powered systems.
Integration with Green Stream telemetry: The CS475A-L seamlessly integrates with Green Stream’s Corbo 12 transceiver by way of an SDI-12 sensor interface card.
Technical Specifications
Measurement Range: 0.5 to 35 meters (1.6 to 114.8 ft)
Resolution: 1 mm
Accuracy: ±2 mm
Power Supply: 9.6 to 30 VDC
Operating Temperature: -40°C to +80°C
Output: SDI-12]
Enclosure: IP68-rated, rugged construction
Dimensions: 129 mm housing height, 115 mm horn diameter, 122 mm horn height (5.1” x 4.5” x 4.8”)
Weight: 2 kg (4.41 lbs)
